VSPEAK Modell ECU Converter / Telemetry for Swiwin

The VSpeak ECU converter is plugged with it's 3-pin blue UNI servo plug on the ECU at the port marked TELEMETRY.

The ECU data can be transmitted by the ECU Converter over the telemetry channel to the radio.

The ECU Converter calculates the fuel consumtion and also transmits it to the respective transmitter of the model pilot.

Furthermore, the function Taxitank is setable.

The VSpeak ECU Converter is compatible with the following remote control systems:

• • PowerBox Core P²-Bus

  • Jeti Duplex (EX-Sensor / EX-Bus)

  • Multiplex MLink (MSB)

  • Graupner HoTT

  • Futaba

  • FrSky S.Port

  • JR PROPO

  • Spektrum X-Bus / SRXL2

The respective remote control system can be set using the button of the ECU converter.

With the remote control systems Jeti Duplex, PowerBox and Graupner HoTT all settings of the converter can be made from the transmitter, on all other systems individual parameters can be set with the help of a micro SD card.

Detailed information about VSpeak ECU telemetry adapter can be found in the detailed manual.

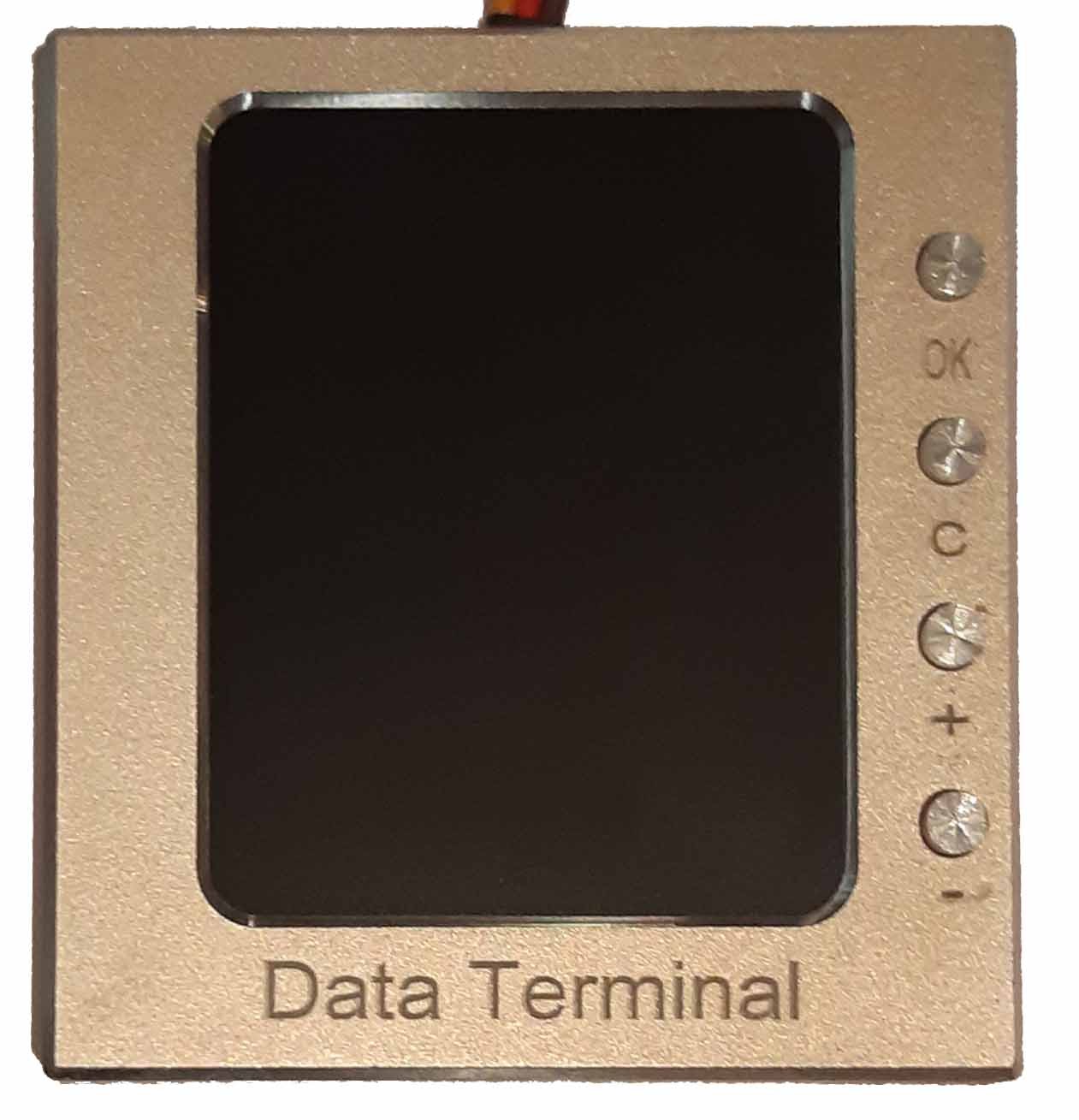

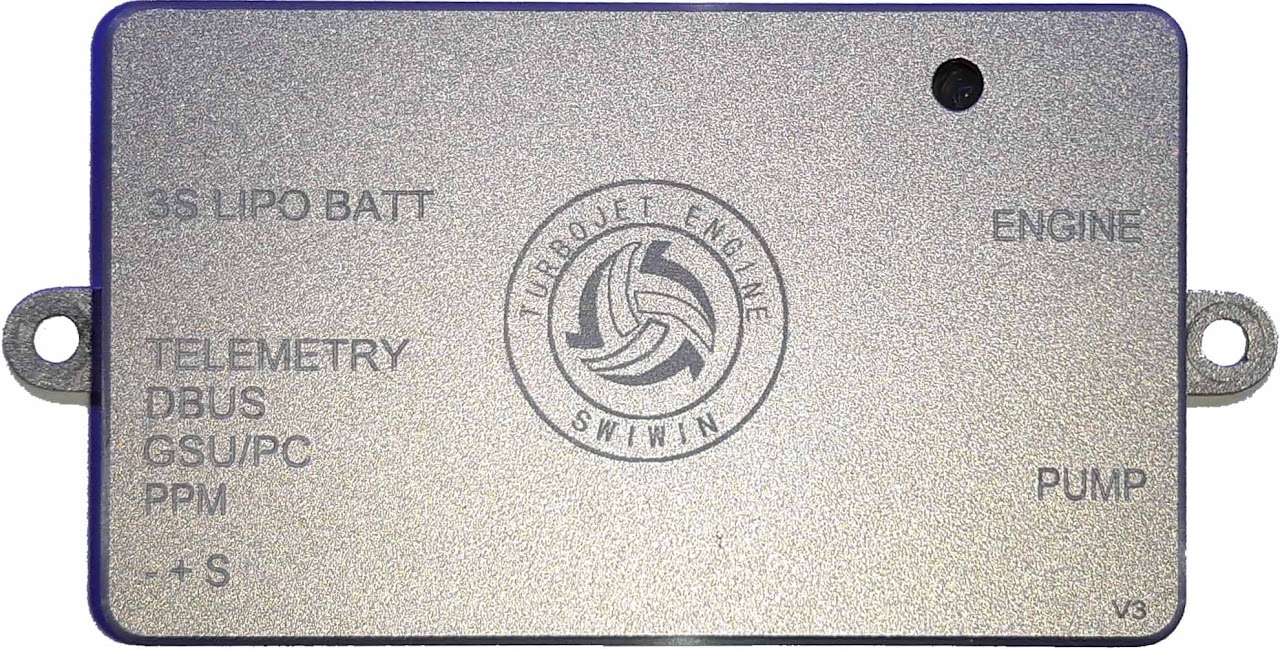

Compatible with the V3 Swiwin ECUs. Pictured below:
